返回>MVRT221-2

您的位置：主頁 > 產品中心 > 電阻產品分類 > 插件電阻 > MVRT221-2 >

TO220功率電阻MVRT221-2

型號：MVRT221-2
品牌：Microhm
封裝：TO220
特點：0.002Ω~10Ω 1.5W~15W ±0.1% ±50ppm/°C
簡介：功率電阻MVRT221-2的特點：0.002Ω~10Ω，TCR≤±50ppm/K，負載穩定性為0.1%，可用于高速開關式電源，緩沖...

咨詢熱線：400-803-9333

產品詳細參數
*阻值范圍:	0.002Ω~10Ω
*額定功率:	1.5W~15W
*電阻精度:	±0.1%
*典型溫飄:	±50ppm/°C
*尺寸:	TO220
*安裝方式:	穿孔
*電阻技術:	金屬箔
*工作溫度范圍:	-40℃~130℃

產品詳情
聯系我們

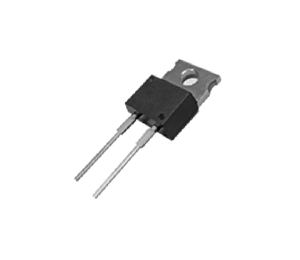

一. 實物圖

二. 特點

阻值：0.002Ω~10Ω
功率可達15W
精度低至±0.1%
TCR≤±50ppm/K
負載穩定性為0.1%
TO220封裝
可加裝散熱片

三. 應用

高速開關式電源
緩沖電路
脈沖發生器的負載電阻
電壓調整
甚高頻放大器
